5 Micron Dutch Woven Wire Mesh 200x1400 Square Shape Filter Cloth

Brand Name : R&K

Model Number : Dutch-10

Certification : SGS

Place of Origin : Hebei,China

MOQ : 1 squaremeter

Price : Negotiate

Payment Terms : L/C, T/T, Western Union，PayPal

Supply Ability : 1000 squaremeter per week

Delivery Time : 5-8 work days

Packaging Details : Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet

Material : Stainless steel woven mesh

Type : Weave wire mesh

Hole shape : Square shape

Application : Screen

Technique : Woven

Feature : Acid resistant

Product name : Dutch mesh

Contact Now

5 micron Dutch weave 200x1400 mesh 316 micron stainless steel wire mesh filter cloth

Description of stainless steel Dutch woven wire mesh

Plain weave woven stainless steel wire mesh features:

"Zero" grid. The line diameter of the warp is larger than the weft.
Each latitude is close to each other.
High precision and flow rate.
It will filter more solid particles than square and rectangular holes.

Feature of the Dutch mesh

• Very thick and stronger
• Fine opening for improved filtration efficiency and quality
• Higher mechanical stability.
• Used as filter cloth
• Precise tolerance

Application of the Dutch mesh

Dutch woven mesh is mainly used for liquid and gas fluids, vacuum and pressure filtration. Ordinary Dutch woven mesh for separating solids and removing liquid filtration, such as cleaning fuel or hydraulic fluids, or for water treatment chemistry, mining

Parameter of Dutch mesh

Plain weave Dutch mesh
Number	Mesh(warpxweft)	Wire diameter (warpxweft)	Aperture (um)	Weight (kg/m2)
32#	8 x 62	0.63mm x 0.45mm	300	5.42
40#	10 x 79	0.50mm x 0.355mm	250	3.16
48#	12 x 64	0.58mm x 0.40mm	280	2.9
55#	14 x 88	0.40mm x 0.30mm	180	2.54
76#	19 x 140	0.315mm x 0.20mm	140	1.88
80#	20 x 300	0.35mm x 0.20mm	-	3.6
95#	24 x 110	0.355mm x 0.25mm	120	2.45
100#	25 x 140	0.28mm x 0.20mm	100	1.95
120#	30 x 150	0.25mm x 0.18mm	80	1.68
140#	35 x 175	0.224mm x 0.16mm	71	1.52
160#	40 x 200	0.20mm x 0.14mm	60	1.40
180#	45 x 250	0.16mm x 0.112mm	56	1.09
200#	50 x 250	0.14mm x 0.11mm	53	1.04
220#	55.5 x 280	0.14mm x 0.10mm	50	0.92
240#	65 x 330	0.11mm x 0.08mm	36	0.71
280#(1)	70 x 350	0.11mm x 0.08mm	35	0.72
280#(2)	70 x 385	0.11mm x 0.07mm	32	0.75
300#	78 x 700	0.11mm x 0.08mm	30	1.39
315#(1)	80 x 400	0.10mm x 0.065mm	40	0.62
315#(2)	80 x 600	0.10mm x 0.06mm	-	0.74
315#(3)	80 x 800	0.15mm x 0.04mm	-	0.77
320#	81 x 780	0.10mm x 0.07mm	30	1.22
354#	90 x 550	0.12mm x 0.05	-	0.667
Width:1m-1.6m

Product Tags:

barbecue wire mesh

decorative metal screen mesh

Buy cheap 5 Micron Dutch Woven Wire Mesh 200x1400 Square Shape Filter Cloth product

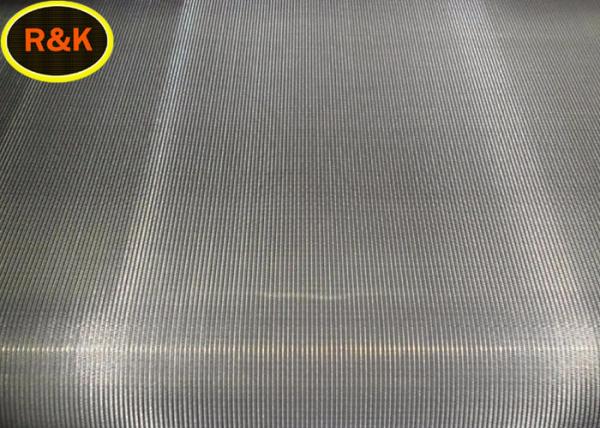

5 Micron Dutch Woven Wire Mesh 200x1400 Square Shape Filter Cloth Images
