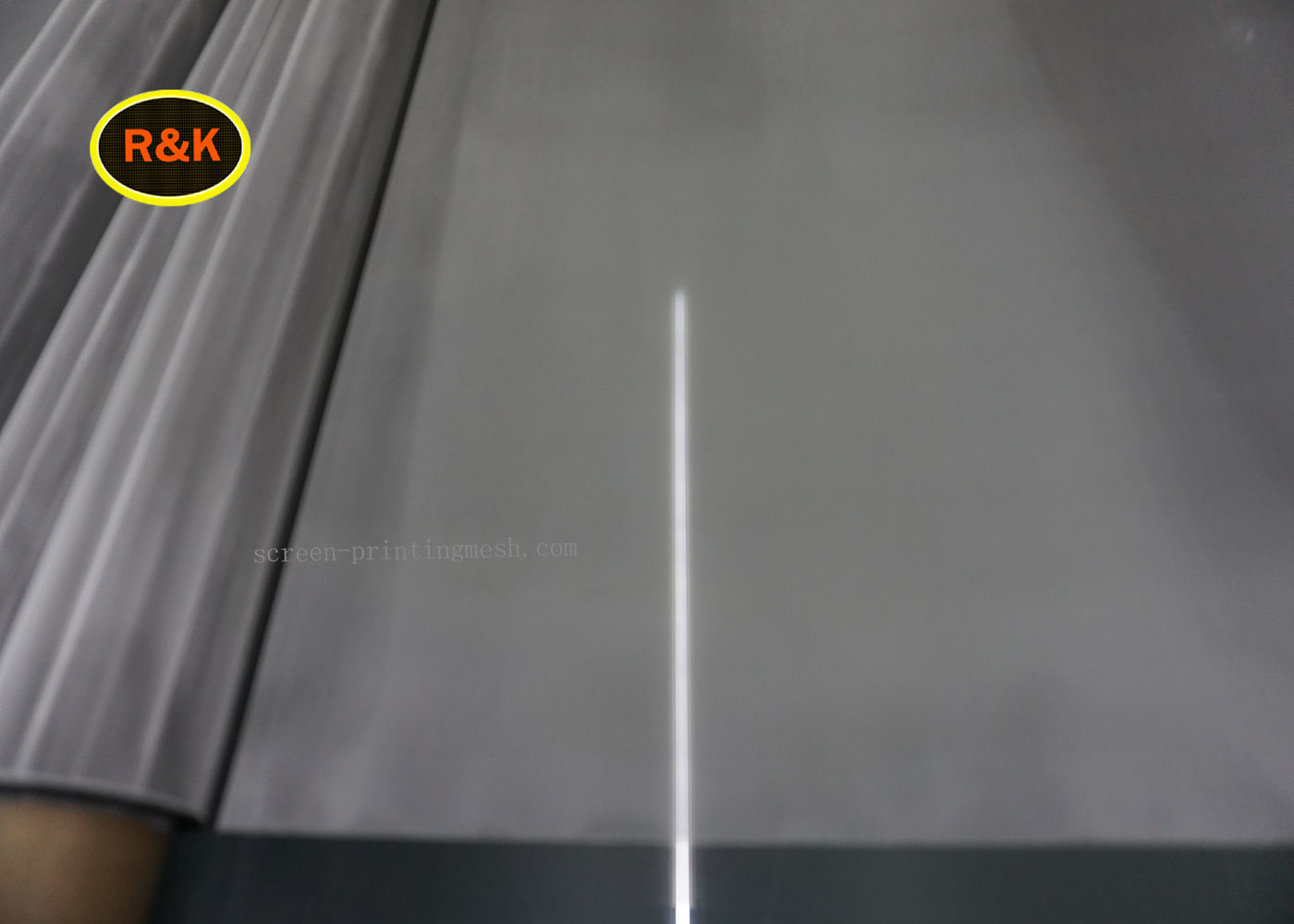

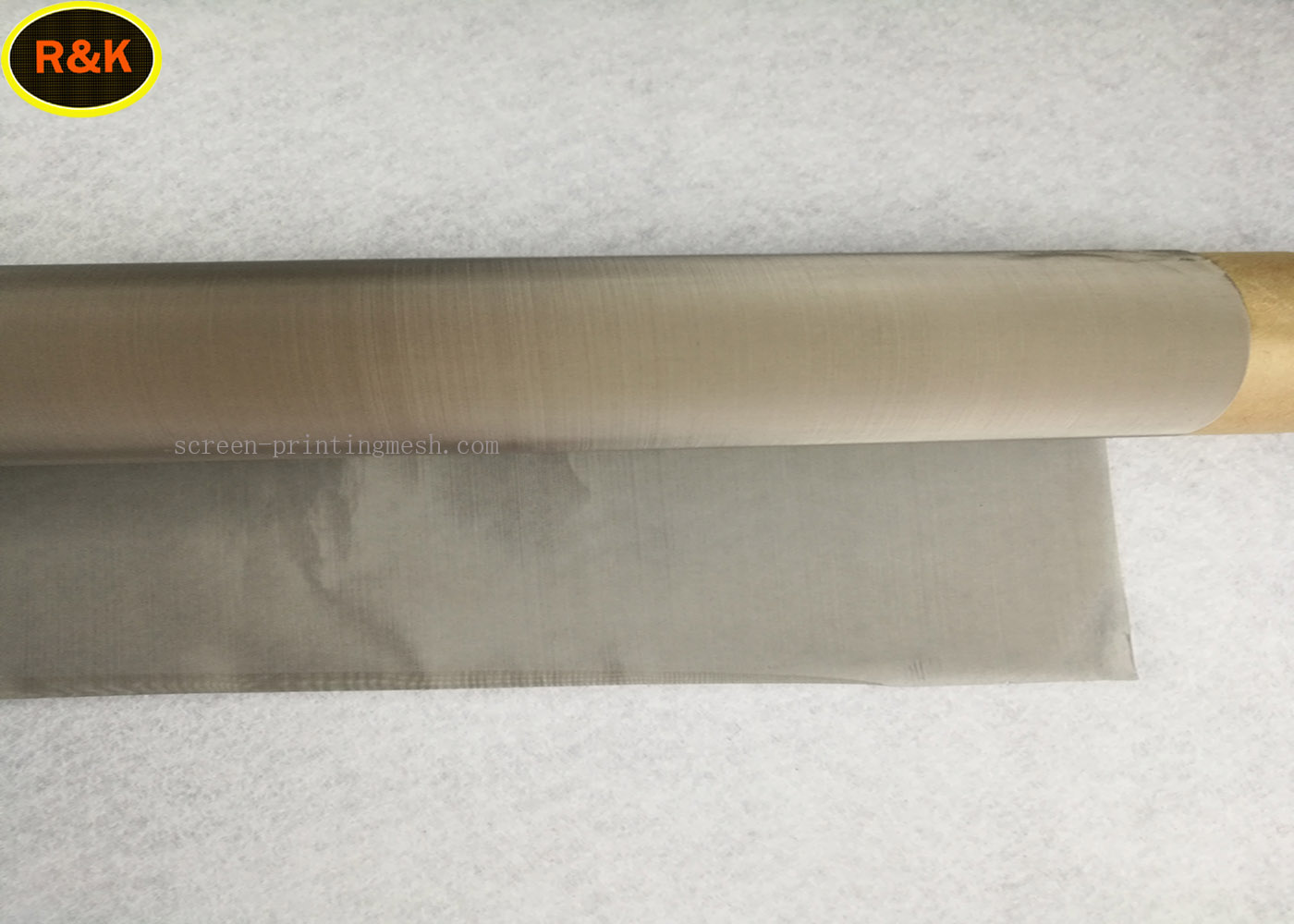

SS304 wholesale durable stainless steel net silk screen printing mesh
Description of 304N stainless steel silk screen printing mesh:
Through the use of carefully selected special alloy materials, and the use of advanced weaving technology to make stainless steel printing network structure is particularly compact, while ensuring the thickness of the tolerances within the tolerance range of high tension, the degree of extension of the net, Of the precision and thus more suitable for high-density printing.
Features of stainless steel silk screen printing mesh:
| Material: | SUS304 |
| Weaving: | Plain weave/Twil weave /Plain Dutch Weave/Twill Dutch weave |
| High tension: | Much higher tension that common polyester mesh and smooth tension. |
| Super precision | Uniform wire diameter and aperture with extremely low difference |
| High flexbility | The wire mesh will not lose elasticity at extreme tension |
| Non-electrostatic | To avoid affects of non-electrostatic for print and ensure the safety of printing |
| Low elongation | Very small elongation of wire mesh at high tension. |
| Good heat-melting resistance | Special features of stainless wire mesh.suitable for heat-melting ink. |
| Good solvent resistance | To avoid the affects of any solvents to wire mesh and to ensure the safety of print screen. |
| High corrosion resistance | The excellent corrosion resistance of stainless steel wire exceeds polyester fiber. |
Specification
| 304N Stainless steel Printing Mesh |
| specification | Mesh(inch) | Wire Diameter(um) | Aperture(um) | Open Area(%) | Thickness(um) | Calendered Thickness(um) | Theoretical Ink Volume(cm3/m2) |
| SS40/160 | 40 | 160 | 475 | 56 | 300-320 | As order | 179.1 |
| SS60/120 | 60 | 120 | 303 | 51.3 | 230-245 | As order | 123.2 |
| SS80/190 | 80 | 90 | 228 | 52 | 175-180 | As order | 103 |
| SS100/100 | 100 | 100 | 154 | 36.8 | 195-205 | As order | 77.2 |
| SS120/80 | 120 | 80 | 132 | 39 | 155-165 | As order | 65.8 |
| SS150/60 | 150 | 60 | 109 | 41.7 | 115-124 | As order | 50 |
| SS165/45 | 165 | 45 | 109 | 50.1 | 89-93 | As order | 45.1 |
| SS200/40 | 200 | 40 | 87 | 46.9 | 82-84 | As order | 43 |
| SS230/35 | 230 | 35 | 75 | 46.7 | 72-76 | 50-67 | 37 |
| SS250/30 | 250 | 30 | 72 | 49.7 | 64-68 | 40-58 | 30 |
| SS270/35 | 270 | 35 | 59 | 39.4 | 76-80 | 58-70 | 30 |
| SS300/30 | 300 | 30 | 55 | 41.7 | 66-68 | 40-59 | 28 |
| SS325/28 | 325 | 28 | 50 | 41.2 | 63-64 | 40-56 | 26.4 |
Application of stainless steel wire mesh:
used in the printing of Chip Elctrical Components,Solar Battery,FPD,LCD,PCB,Glass,etc,
Porcelain Printing ,T-shirt Printing ,Textile Printing.
